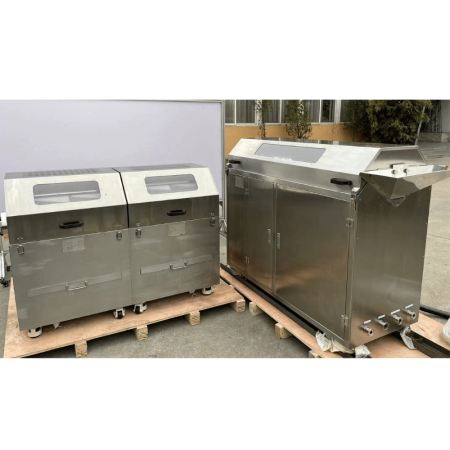

Automatic Softgel Alcohol Washing Machine
The JLXWJ Automatic Softgel Washing Machine is a new-generation, fully automated system that integrates washing, alcohol circulation, ultrasonic sterilization, and efficient drying into a seamless one-touch operation. Controlled via an explosion-proof PLC and touchscreen, it delivers reliable performance with a capacity of 220kg per hour, offering a robust and efficient cleaning solution for softgel production.
The JLXWJ softgel washing machine represents the next generation in softgel finishing technology, offering a complete, automated solution for washing and drying capsules. Engineered for efficiency, safety, and consistent results, it streamlines the entire softgel washing process from loading to discharge.
- Fully Automated Process Flow
This softgel cleaning device automates every critical step:
- Automatic Feeding & Discharging: Minimizes manual handling.
- Integrated Ultrasonic Cleaning: Provides deep, online ultrasonic decontamination within the wash cycle.
- Alcohol Spray & Circulation: A dedicated pump ensures thorough alcohol cleaning with efficient solvent use.
- High-Speed Drying: Powerful air blowers mounted under thetumble dryer ensure capsules dry faster after washing.
- Intelligent Control & Operation
The system is built around user-friendly and precise control.
- Explosion-proof PLC & Touchscreen: The central interface for all operations.
- Dual Operating Modes:
- Debug Mode: Allows operators to test and summarize the optimal process parameters.
- Automatic Mode: Executes the entire cleaning process with a single touch using saved parameters.
- Data Management: The system enables fulloperation records, fault alarms, and traceable data logging.
- Robust System Architecture
Designed for durability and effective cleaning action.
- Core Components: Includes the feeding hopper, washing barrel, alcohol tank, and discharge outlet.
- Rotary Tumble Dryer Design: Ensures gentle yet thorough tumbling of softgels for uniform washing and drying.
- External Layout: Features a side air intake and houses the main electrical cabinet in a non-explosion-proof area for safety and maintenance ease.
- Safety & Performance Features
- Explosion-Proof Construction: Equipped with explosion-proof motors for safe operation in alcohol environments.
- High-Capacity Output:Delivers a powerful cleaning capacity of 220kg per hour.
- Dedicated Drying Stages: Utilizes one tumbler for washing and two for dedicated drying, maximizing throughput.
- Modern Design: Housed in a frame with a professional external matte finish.
This machine combines a simple structure with a stable and reliable system, making it an ideal automatic alcohol soft capsule cleaning machine for enhancing productivity and quality in pharmaceutical and nutraceutical production.
| Material: | Main material is SUS304 while contact part is SS316L |
| Pump Power: | 0.37KW |
| Reducer Power: | 0.4KW |
| Rotating Speed: | 10~20RPM |
| Washing Capacity: | 220kgs/h |
| Air Pressure: | 0.4~0.8Mpa |
| Alcohol Consumption: | 25kgs/h |
| Dimension: | 1495x875x1260mm |
