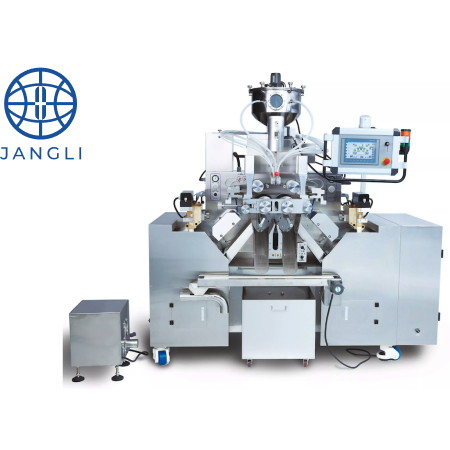

Product Overview: JL-250 Full Automatic Softgel Encapsulation Machine

The JL-250II Automatic Softgel Encapsulation Machine integrates years of specialized expertise in softgel manufacturing with globally advanced technologies. This next-generation machine is engineered to deliver high performance and reliability across diverse sectors such as pharmaceuticals, veterinary medicine, health products, cosmetics, paintballs, tobacco, and soft confectionery (including jelly drops).

Key Features:

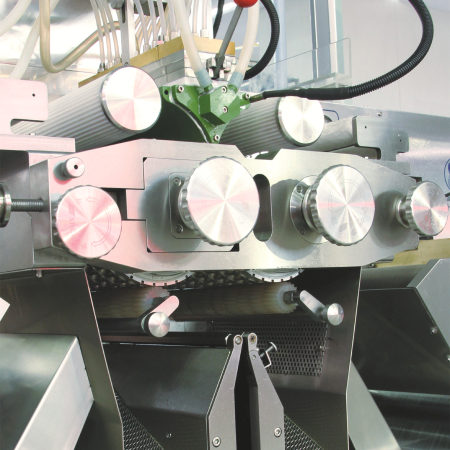

• High-Precision Bearing System: Equipped with Swiss-made bearings for enhanced concentricity, even with extended die rollers, ensuring long-term accuracy and stability.

• Pneumatic Die Roller Pressure System: An automated pneumatic mechanism applies consistent pressure to the die rollers, simplifying operation and improving process control.

• Electric Wedge Adjustment: An electric lift allows the wedge to be positioned accurately at any height, offering flexibility for various production requirements.

• Frequency-Controlled Drive System: Both main shafts and gelatin ribbon rollers are driven by frequency converters, enabling smooth and adjustable speed control tailored to production needs.

• Micro-Lubrication System: Designed to minimize lubricant consumption while maintaining optimal machine performance.

• Low-Noise Operation: An optimized transmission system significantly reduces operational noise, creating a better working environment.

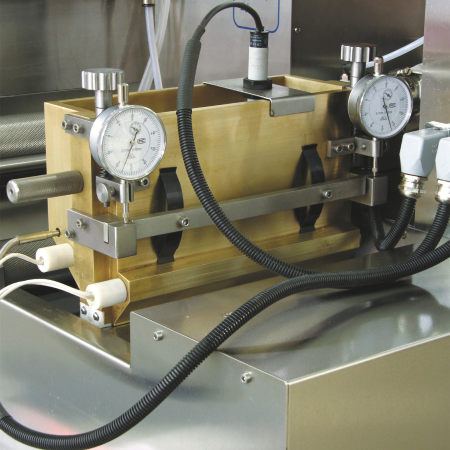

• Precise Gelatin Thickness Control: The gelatin feed system allows fine adjustment of the ribbon thickness via accurate control of the box opening.

• Uniform Water-Heated Wedge: Ensures even temperature distribution across the wedge, resulting in softgels with superior shape and appearance.

• Temperature-Controlled Filling Hopper: Heated and insulated to maintain ideal conditions for suspension-based fillings, preventing settling and ensuring smooth encapsulation.

• Siemens PLC & HMI Touchscreen: Features a user-friendly interface with a Siemens PLC for intuitive operation and precise management of machine functions.

• PID Temperature Regulation: Advanced PID technology integrated into the PLC allows exact control of wedge temperature for consistent product quality.

• One-Touch Formula Memory: Allows operators to save and recall production settings instantly with a single touch, facilitating quick changeover and repeatability for recurring orders.
