Single Layer Softgel Drying Tumbler
The single-layer and double-layer soft capsule drying cylinders are identical in structure and working principle, with the only difference being the number of tiers. The single-layer soft capsule drying cylinder is available in three sizes—small, medium, and large—to meet the needs of different soft capsule manufacturers.
Our size specifications are: Φ350×560mm, Φ520×620mm, and Φ600×900mm.
This machine can also be used for paintball drying.

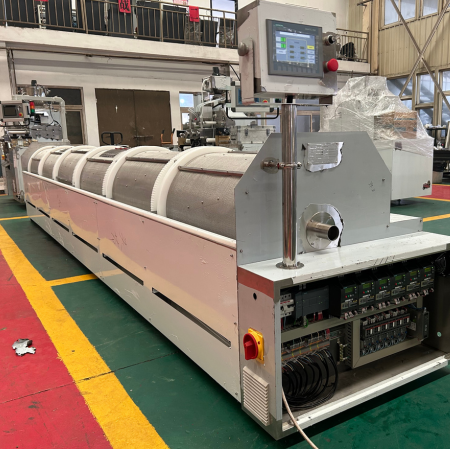

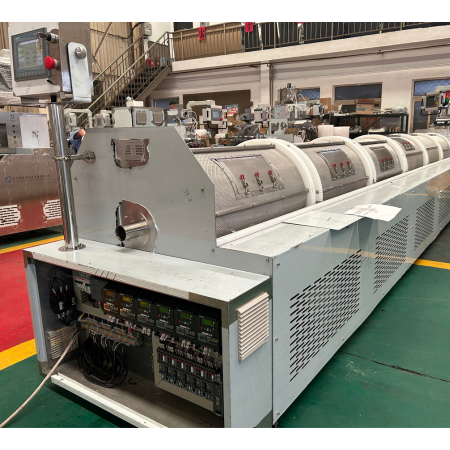

This single layer Soft Capsule Drying Machine represents the latest advancement in tumble dryer technology. It is engineered to deliver high efficiency, superior hygiene, and reliable performance for modern pharmaceutical and soft capsule production.

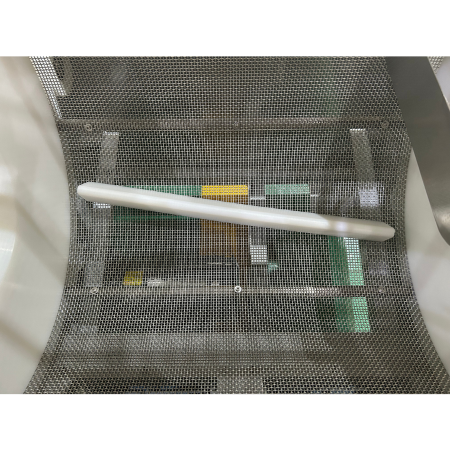

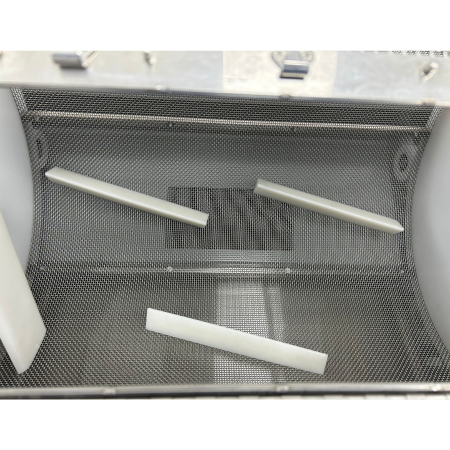

Key features of the machine include an optimized airflow system with specially designed flow-guiding blocks and fans inside the drying baskets. Utilizing advanced manufacturing techniques, this design maximizes air utilization to ensure uniform and rapid drying.
All components that come into contact with the capsules are constructed from SUS316 stainless steel and UHMW-PE, guaranteeing excellent corrosion resistance and compliance with stringent hygiene standards.
In addition, this JLGZ-B single layer softgel drying tumbler adopts a direct-connect drive mechanism instead of traditional chain transmission. This innovation not only enhances operational stability but also eliminates the risk of contamination caused by lubricants or wear particles from chains, ensuring a cleaner production process.
| Model: | JLGZ-B |
| Number of Basket: | 6 cages |
| Basket Size: | ∮520*620mm |
| Motor Power: | 0.45KW*6 |
| Fan Power: | 0.4KW*6 |
| Fan Delivery: | 2200m3/h*6 |
| Fan Total Pressure: | 300PA*6 |
| Fan Noise: | 62DB(A) |
| Basket Material: | SUS 316 |
| Transmission System Material: | oil-free lubrication UHMW-PE |

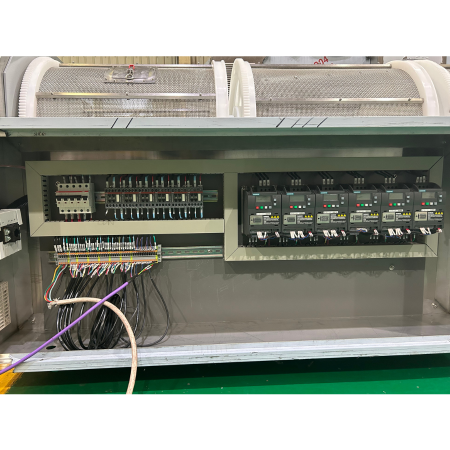

| Electric Control: | With electric cabinet |
| Speed: | Frequency conversion control, 0-30 rpm |
| Direction: | Each basket can turn forward and reverse separately |
